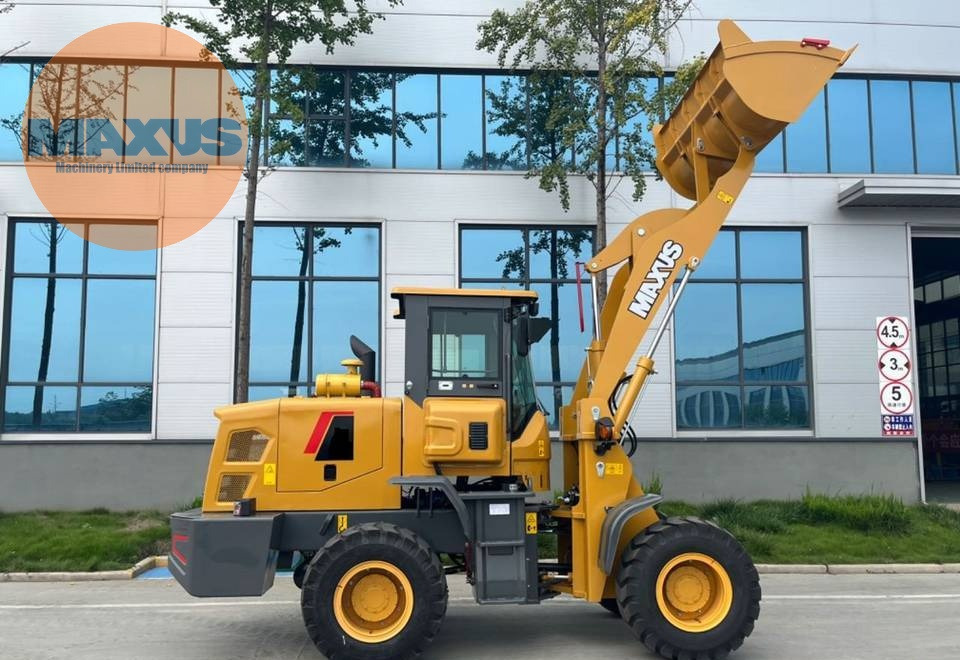

Нови Колесен товарач Maxus Maxus Loader 2tones

MAXUS

1.0 Engine

(1) Brand/Model: Yunnei YN33GBZ

(2) Type: Inline, water-cooled, four-cylinder, turbocharged diesel engine

(3) Rated Power: 90 HP

Optional Models:

EPA3 YANMAR Engine; EPA3

CUMMINS Engine; EPA4

2.0 General Dimensions

(1) Overall Length: 6500 mm

(2) Overall Width: 2000 mm

(3) Overall Height: 2860 mm

(4) Bucket Hinge Pin Height: 4500 mm

(5) Telescopic Stroke: 1100 mm

(6) Extended Boom Length: 2950 mm

Bucket Max. Lifting Height: 5100 mm

Bucket Max. Dumping Height: 4000 mm

3.0 Transmission System

Gearbox + Hydraulic Torque Converter + Drive Shaft + Hub Reduction Axle

4.0 Loader

(1) Capacity: Approx. 1m³

(2) Width: Approx. 2000 mm

(3) Type: Heavy-duty bolt-on teeth

Max. Load Capacity: 2000 kg (including bucket or attachments)

5.0 Operating Specifications

Steering System: Articulated hydraulic steering system

Drive System: Four-wheel drive

Hydraulic Quick Coupler: Yes

Mechanical Pilot Joystick Display: Yes

Constant Increase: Yes

6.0 Braking System

(1) Service Brake: Four-wheel disc brake

(2) Parking Brake: Disc brake

7.0 Tires

(1) Model: 16/70-20 Chevron Tire

(2) Size: Width: 380 mm, Diameter: 1075 mm

8.0 Wheelbase: 2550 mm

9.0 Track Width: 1600 mm

10. System Pressure: 20 MPa

11. Weight: 5500 kg

If you need a different drone, various capacities or machines are available. No problem – just ask your question, and you will receive an immediate response.
