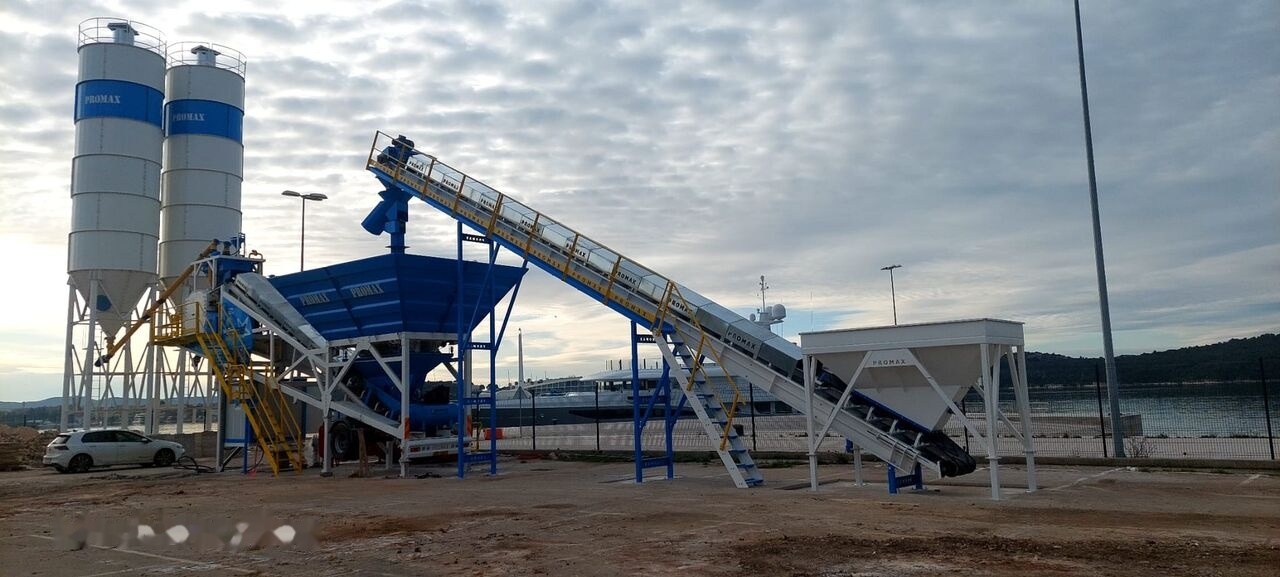

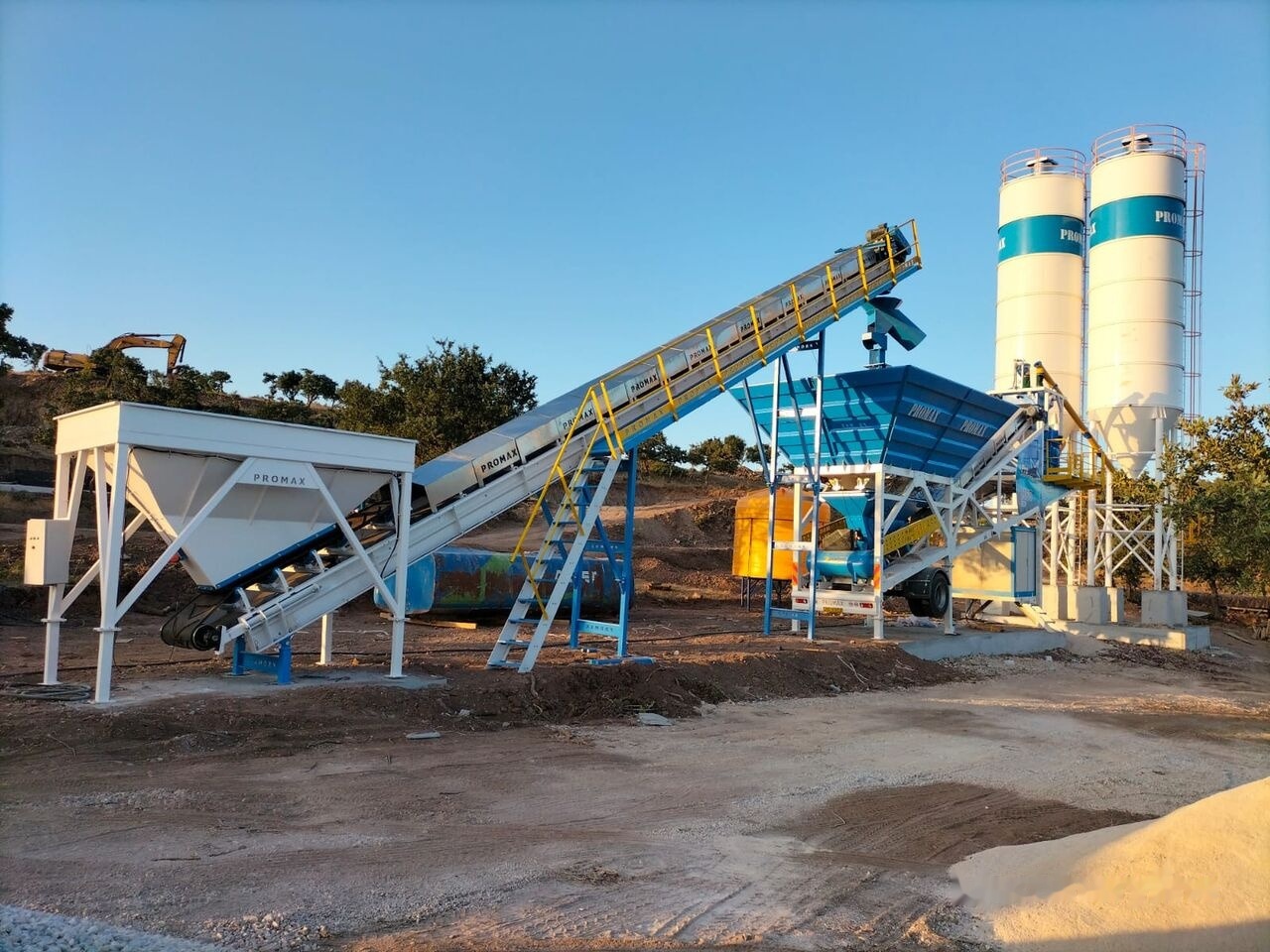

Бетонов възел Promax-Star PROMAXSTAR M60 Mobile Concrete Batching PLant

• - Konstrollsystem
• - Kontrollraum
• Size:2350x3000x210 mm Material:40mm insulation panels. Other:The filling transmitters and other areas of the plant are equipped with glass so that it is visual.They are equipped with light outlet..
• - Staubfilter/Staubfang

Promax M60

Plant Capacity

Compacted concrete capacity 60 m³/h

Air Compressor

Capacity (welded or bolted) 1400 lt/dk

Working pressure 7-8 bar

Engine power 5,5 kw

Aggregate Hopper

4 Bins 4×10 = 40 m³

Bunker Grid

Mixer Specifications

Mixer Type Panmixer-Single Shaft

Dry Capacity 1500 lt

Mixer Capacity 1000 lt

Engine Power 37 kw

Mixer Converyor Band

Width 800 mm

Length 11000 mm

Engine Power 15 kw

Weighbridges

Aggregate Weighbridge 3000 kg

Cement Weighbridge 450 kg

Water Weighbridge 300 lt

Additives Weighbridge 20 kg

Cement Silo

Capacity (welded or bolted) 75-100-200 tons

Silo Quantity 1,2,3,4 adet/piece

Cement Silo and Screw Conveyor

Diameter 219 mm

Length 7000 mm

Engine Power 7,5 kw

Silotop Filter

Valve – Manuel Arm

Security Valve
