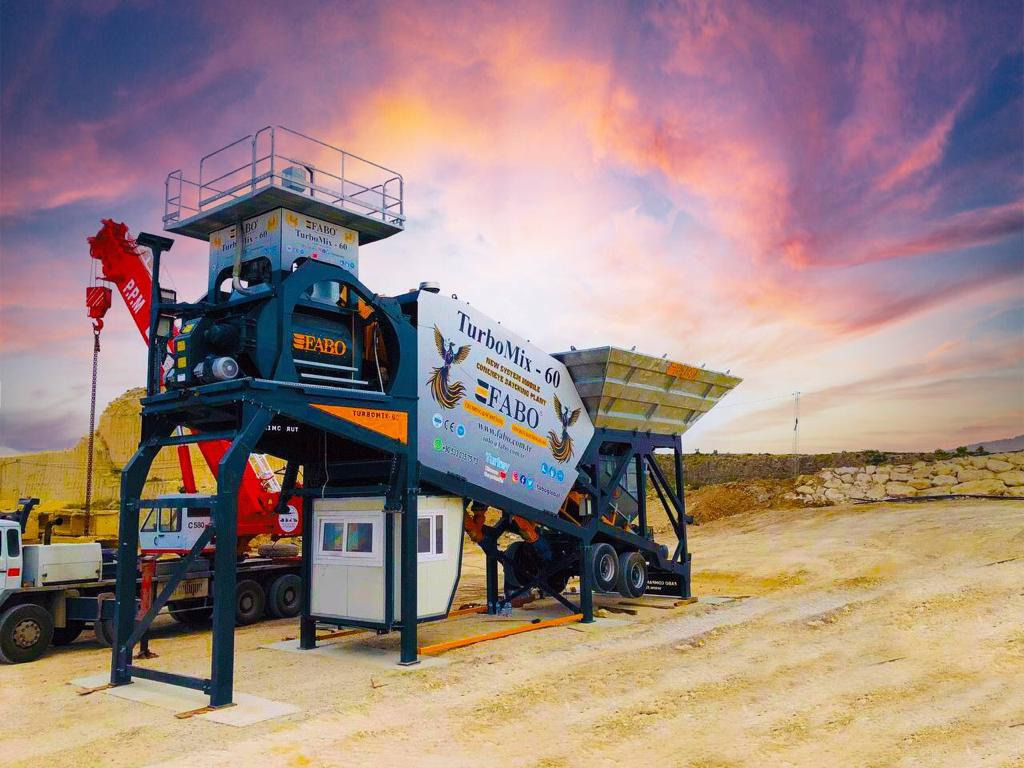

FABO TURBOMIX FULL AUTOMATIC MOBILE CONCRETE BATCHING PLANTS are ideal solutions for the projects that require short term and a compacted settlement on a dedicated job site. Since all the equipment of a concrete plant is assembled on a single mobile chassis, the plant can be moved easily by only one truck. Productivity of TURBOMIX mobile concrete plants vary from 30 m3/h to 150 m3/h.

FABO TURBOMIX series of mobile concrete batching plants have automatic control, static/dynamic Load Cell Weighing of aggregate materials and additives. Concrete plants have qualitative and strong concrete mixer, which provides high capacity homogeneous mixture.

TECHNICAL SPECIFICATIONS:

Model: TURBOMIX 60

Production capacity: 60 m3

Dimensions (length x width x height): 15500 x 3000 x 4500 mm

Mixer type: 1m3 twinshaft

Aggregate bunker: 4x10 m3

Transfer conveyor: 2500 kg

Cement weighing: 500 kg

Additives weighing: 30 kg

Water weighing: 200 lt

Total weight: 19650 kg

Total motor power: 60 kW

Cement silo is optional.

Turbomix 60 consists of:

• Aggregate Storage Hopper

• Aggregate Weighing Hopper

• Aggregate Transfer Conveyor

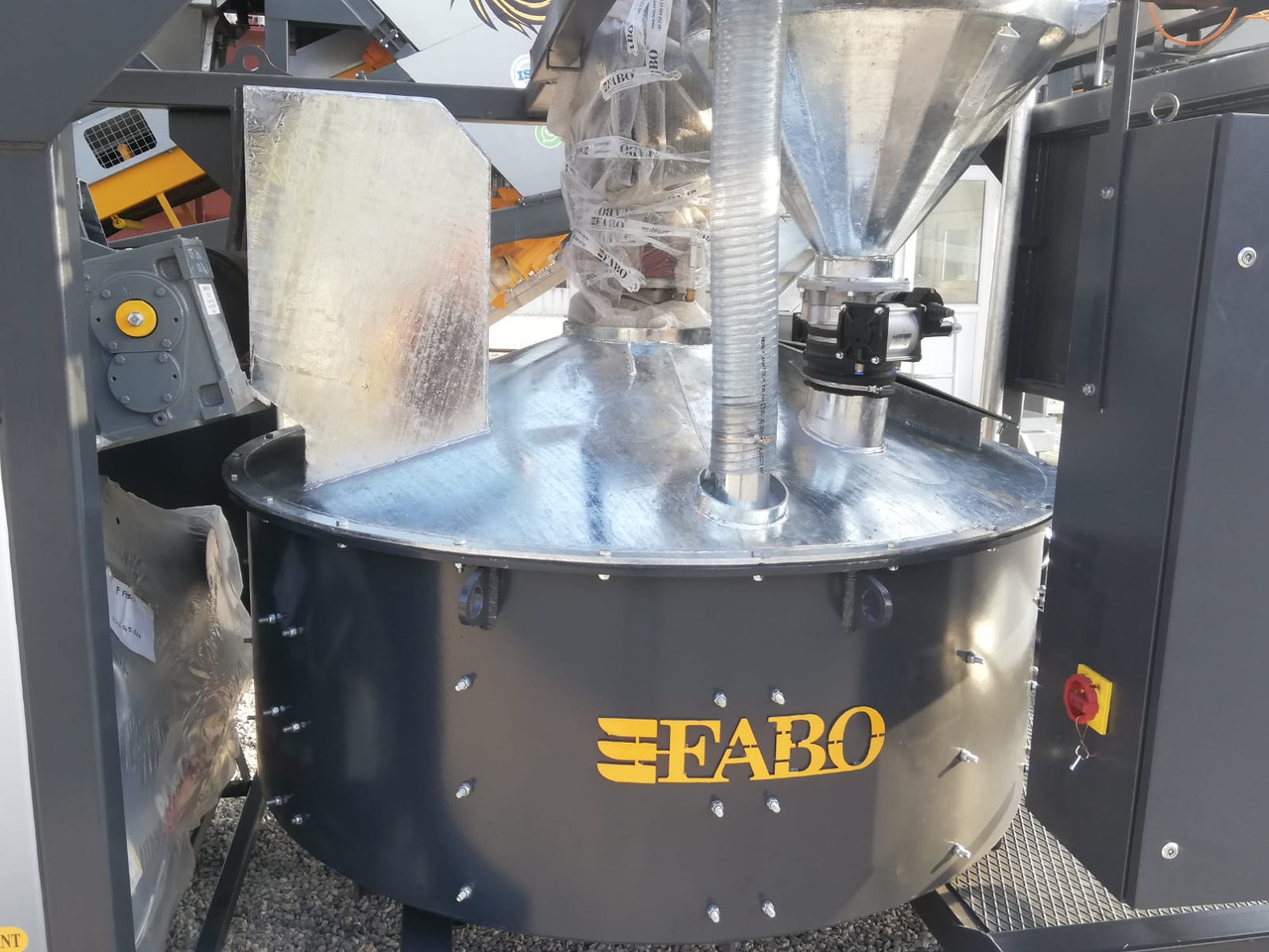

• Pan Mixer

• Mixer Chassis, Walking Platforms, Ladder

• Water Weighing Hopper

• Cement Weighing Hopper

• Admixture Weighing Hopper

• Air Compressor

• Cement Screw Conveyor

• Bolted Cement Silo

• Top Filter, Safety Valve and Accessories

• Control Cabinnet

• PC and Automation System

• Control and Power Panel
