Лизинг на TICAB Paving Machine,Asphalt Laying Equipment, Manufacturer

We produce high-quality and efficient road machinery and offer the lowest prices on the European mechanical engineering market!!

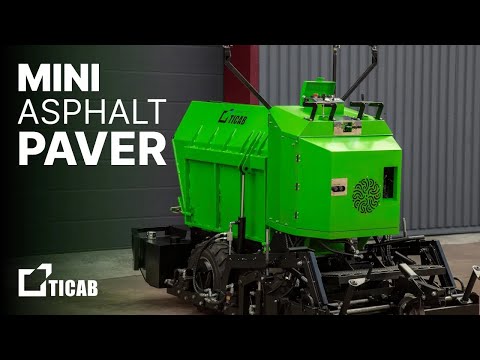

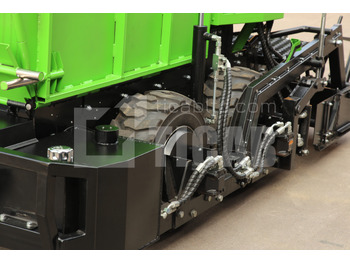

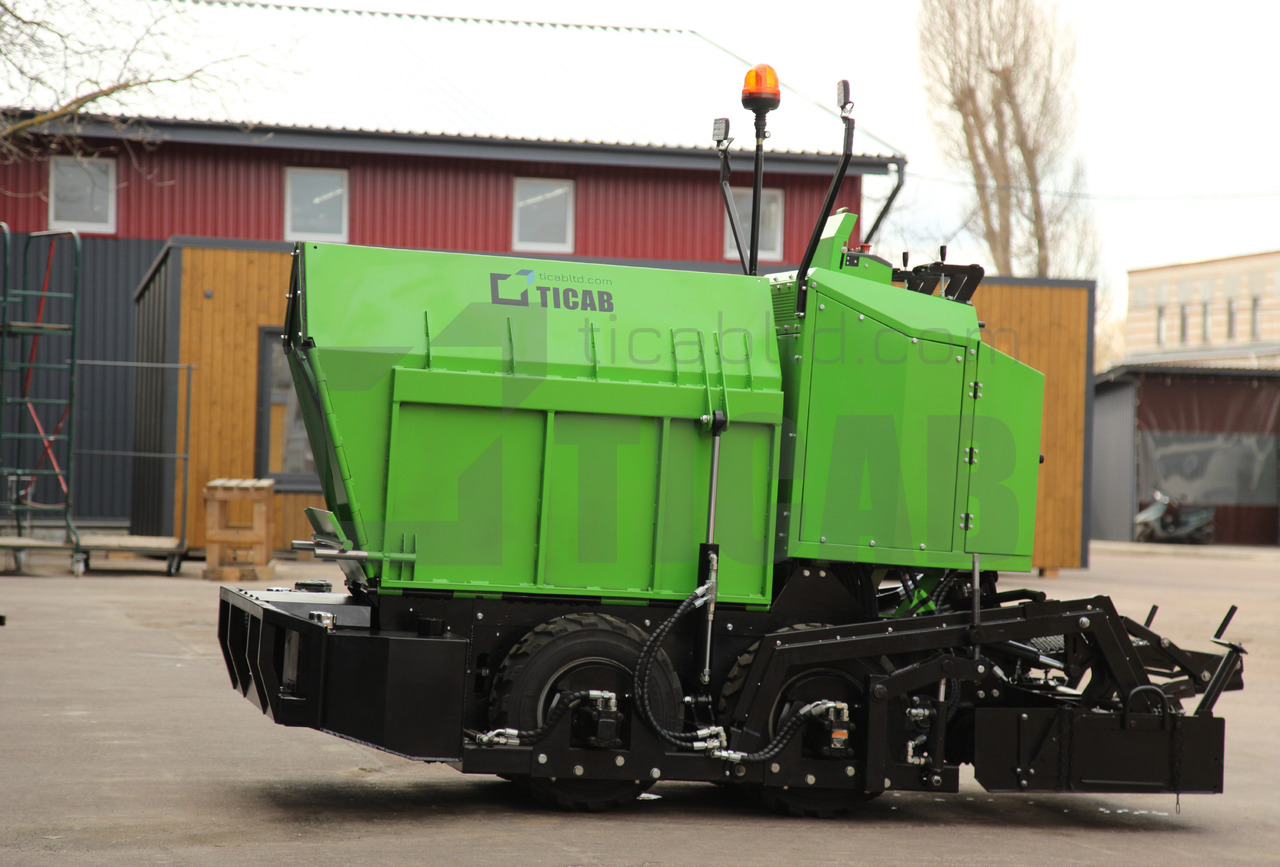

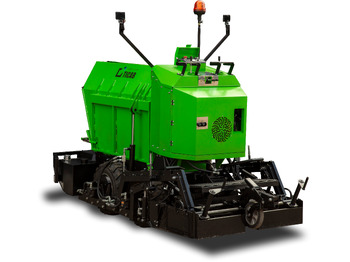

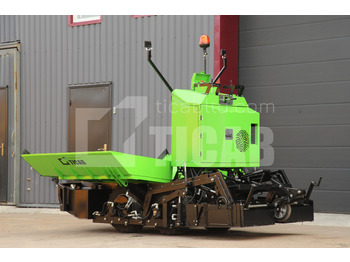

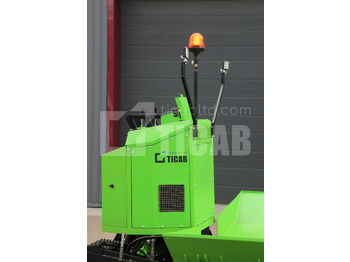

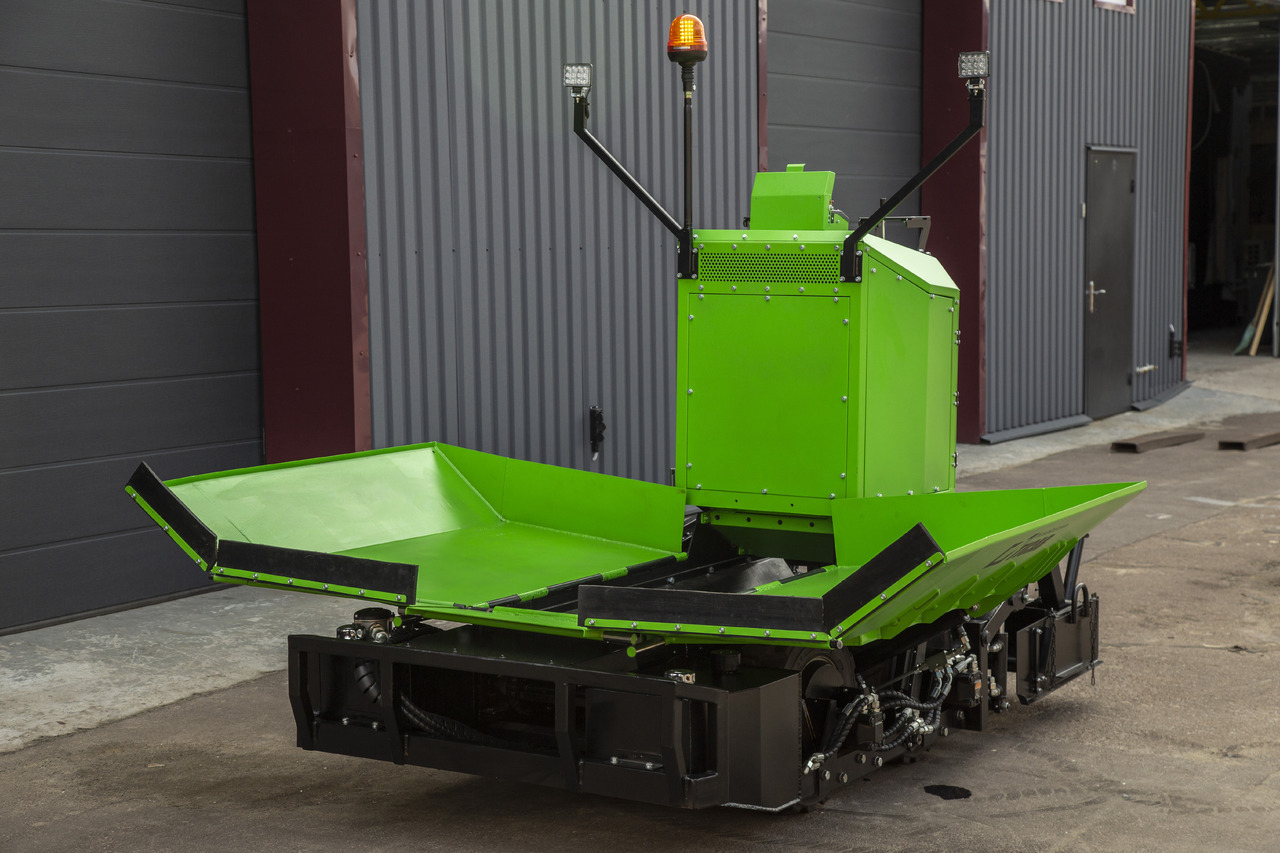

The MP-1100 mini asphalt paver from Ticab LTD is designed for applying asphalt layers in small or narrow areas where larger pavers are difficult to access.

Its compact size and manoeuvrability make it ideal for small construction projects or maintenance work

SPECIFICATIONS::

WEIGHT, T

Loaded (With material): 5 т

Unloaded (Without material): 1,4

BUNKER,, m³

Capacity : 1,5

CHASSIS

Type of chassis: wheeled

Working speed: 0.6 km/h.

Transport speed: 2.5 km/h

Type of drive: hydraulic

Drive wheels: 4

Steering: hydraulic

CONVEYOR

Type: chain, scraper

Conveyor control: automatically by end vane

AUGER

Diameter: 150mm

ENGINE

Type: air-cooled petrol engine

Engine power (net): 15.5 kW (20.8 hp) / 3600 rpm.

Fuel consumption at nominal power: 6.0 l/hour. - 3600 rpm..

Fuel tank capacity : 50 л

Hydraulic tank capacity: 30 l

OVERALL DIMENSIONS::

Transport length, mm: 3470 ±10

Transport width, mm : 1430 ±10

Working width, mm : 1400 ±20

Working length, mm : 2520 ±20

Height, mm : 2315±20

Theoretical paving capacity: minimum 35t/h

Width of the paved strip, m : up to 2.0

Layer thickness, mm : 5-100

Delivery terms:

• Production time: up to 80 working days after order confirmation

• Warranty: 12 months

• Delivery: from the manufacturer's warehouse

• Support: instructions, technical support, video instructions
