Нови Дробилка за дървесина, Камион Mercedes MUSMAX WT11 NMV

Price: Price is negotiable

-

Range, mm: 10 mm

-

Lifting moment: 120 kNm

-

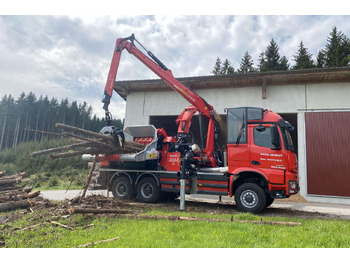

New wood chipper for sale Mus-Max WT 11 NMV on Mercedes-Benz AROCS 3363A 6x6 EURO6 chassis, which will be produced in 2025-01.

Model WT11 NMV

Type Wood chipper mounted on truck platform

Capacity (approx.) 230-250 m3/h;

Wood chopping drum 10 blades, blades interchangeable and sharpenable.

Length of feeding table Length of feeding table 2.70m;

Max. Hardwood diameter 50 cm;

Max. Wood diameter 75 cm;

Chipper width 2.55m.

Exhaust pipe height Max. height up to 5.20m;

Exhaust propeller 280mm diameter exhaust propeller, hydraulically movable exhaust "blades"

Maximum possible chip ejection distance 16 years;

Colours Red and black;

Controls Control of the chipper from the cab of the truck, including remote control of the exhaust pipe, pedal-controlled feed drum and feed conveyor, in-cab chipper computer with parameter settings, control selections, hour meter;

Exhaust Hydraulic control of the exhaust pipe, the exhaust propeller is rotated by a separate hydraulic motor. Extended crusher exhaust pipe for further and more accurate chip ejection;

Emergency stop buttons on both sides of the shredder;

Warranty 1 year or 1000 moto hours, whichever is sooner;

Power transmission Connection of the shredder directly from the Mercedes - Benz engine and reverse reduction gear for the required direction of rotation;

Oil tank 330 litres;

Oil cooler Additional, more efficient oil cooler;

Cameras Rear-view camera and camera on the end of the chopper exhaust pipe;

Grilles 80/100mm and 30mm size included;

1 storage box with tools inside for maintenance of the shredder;

Central lubrication system Beka-Max automatic central lubrication system;

Palfinger Q130LD104 manipulator

Crane reach 10.4 m;

Serial number Available upon order confirmation

Lifting capacity 111 kNm;

Boom slewing angle 385°;

Crane colour 3020 RAL red;

Control of the manipulator by Danfoss joysticks, electro-hydraulic, control from the truck cab by Danfos PROFI 1 joysticks;

Biofuel grab Cutting area 0.30m2, for biofuel loading; (Palfinger FG31R)

Hydraulic side support legs Hydraulic support legs to keep the chassis stable during crushing;

Crane suspension Rotator and swing brake;

Mercedes-Benz AROCS 3363A 6x6 EURO6

Chassis model Mercedes-Benz AROCS 3363A 6x6 EURO6

Engine power 630 ag engine power;

Cab type L cab, converted from a truck cab

Wheelbase 4200mm wheelbase;

Fuel tank 570 litres fuel tank and 60 litres Ad-Blue tank;

Axles Front axle 9.0 tonnes, rear axles 2x 13.4 tonnes;

Interior equipment Comfort driver's seat, leather - heated/ventilated. MBUX multimedia, BG-Superflex operator's seat - for crusher control, pneumatic with ventilation function. Sun curtains fitted in the redesigned cab.

Cooling system Additional cooling system for more efficient engine and hydraulic oil cooling;

Additional air-conditioning Additional air-conditioning installed on the cab of the truck

-

Comes with a

1 000 hour manufacturer warranty
